Introduction: Building Your Own Mini Catamaran Ever dreamed of gliding across the water on your own handmade boat? Building a mini catamaran is a fun and rewarding DIY project that combines engineering, craftsmanship, and a love for the sea. This guide will walk you through the process, step-by-step, to help you create your very own miniature catamaran. Get ready to embark on this exciting journey!

Materials You'll Need:

• Two identical pieces of buoyant material (foam, sealed plastic bottles, etc.) for the hulls. Size will depend on desired scale (e.g., 12" x 4" x 2" for a small tabletop model).
• Thin plywood, balsa wood, or strong cardboard for the deck and crossbeams (also known as beams).
• Waterproof glue or epoxy resin.
• Sandpaper.
• Ruler or measuring tape.
• Saw or craft knife.
• Clamps.
• Paint or sealant (optional, but recommended for waterproofing).
• Optional: Mast and sail (if you want a sailing catamaran).

Step 1: Preparing the Hulls Begin by ensuring both hulls are identical in size and shape. Sand down any rough edges to create a smooth surface. If using plastic bottles, securely seal them and check for leaks. The hulls are the core of your catamaran, so accuracy here is key. For foam hulls, consider applying a waterproof sealant at this stage.

Step 2: Cutting the Deck and Crossbeams Measure and cut the deck to the desired size. The deck should be slightly wider than the combined width of the two hulls plus the desired space between them. Next, cut two or three crossbeams. These beams will connect the two hulls and provide structural support. The length of the crossbeams should match the width of the deck. Consider the spacing of these beams as they will bear the weight evenly.

Step 3: Assembling the Frame Apply glue or epoxy resin to the top of each hull where the crossbeams will attach. Carefully position the crossbeams on the hulls, ensuring they are evenly spaced and perpendicular to the hulls. Use clamps to hold the pieces together while the glue dries completely. This step is crucial for the catamaran's stability.

Step 4: Attaching the Deck Once the frame is dry, apply glue or epoxy resin to the top of the crossbeams. Position the deck on top of the crossbeams, ensuring it is centered and covers the entire frame. Again, use clamps to hold the deck in place while the glue dries thoroughly. Make sure the deck is securely attached to provide a stable platform.

Step 5: Sanding and Finishing After the glue is completely dry, remove the clamps. Sand down any rough edges or glue residue on the deck and hulls. This will create a smooth and professional finish. If desired, apply paint or a waterproof sealant to protect the wood and enhance the appearance of your catamaran. Allow the paint or sealant to dry completely.

Step 6: Adding a Sail (Optional) If you want your catamaran to sail, you'll need to add a mast and sail. Cut a small hole in the deck for the mast. Secure the mast in place with glue or epoxy resin. Design and create a sail from fabric or paper. Attach the sail to the mast using string or tape. Experiment with different sail designs to find what works best for your catamaran.

Conclusion: Your Mini Catamaran is Ready! Congratulations! You've successfully built your own mini catamaran. Now, find a calm body of water and test out your creation. Observe its buoyancy, stability, and sailing performance (if applicable). This project is a great introduction to boat building and can be easily scaled up for larger and more complex catamaran designs. Enjoy the fruits of your labor and happy sailing!

Domus Cat: The 30m Catamaran Concept From Van Geest Design And Rob Doyle Design

www.superyachttimes.com

Bruce Roberts, Catamaran Boat Plans, Catamaran Boat Building, Boatbuilding, Steel Boat Kits

www.bruceroberts.com

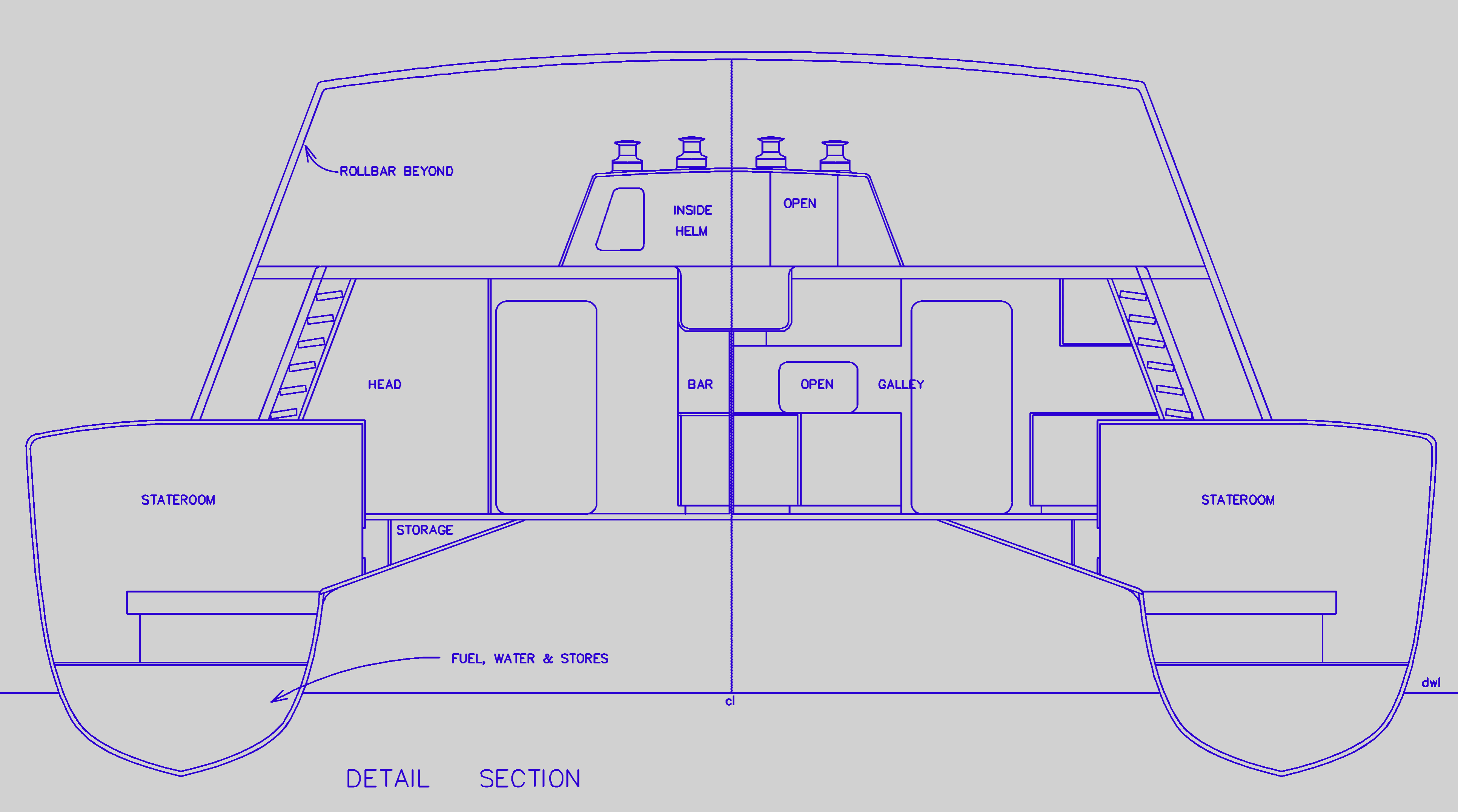

Boat Plans Catamaran
